3kw Three Phase Horizontal Asynchronous Electric Ac Motor for Industry Machine-Ningbo Deyu Electromechanical Equipment Co.,Ltd.

The 3EA10430N-WSD 3kw Three Phase Horizontal Asynchronous Electric Ac Motor for Industry Machine is rated at 3 kilowatts, suitable for a frequency range of 50Hz and 60Hz, and a rated voltage of 380 to 440 volts. The motor adopts a four-pole design to ensure that it can provide stable speed and torque output during operation to meet the needs of various industrial applications.
The energy-saving characteristics of this motor are particularly prominent, thanks to its asynchronous motor technology and structural design. This design significantly reduces energy losses, thereby improving energy utilization efficiency and making it more economical during operation. The high-quality materials selected in the manufacturing process of the motor and the exquisite manufacturing process ensure its excellent durability and reliability.
The horizontal installation method of the motor not only improves its fixed stability in industrial machinery and equipment, but also greatly facilitates daily maintenance and repair work. In addition, the motor has an IP55 protection level, which effectively blocks the intrusion of dust and moisture, ensuring its stable operation in various harsh environments. The IC01 cooling method uses natural air convection to dissipate heat, which reduces the operating temperature of the motor and further improves its service life and reliability.
In terms of speed regulation performance, the 3EA10430N-WSD motor performs well and can flexibly adjust the speed according to the actual working conditions to adapt to different working conditions and load requirements. In addition, the low noise and low vibration characteristics of the motor ensure a quiet and stable working environment, effectively avoid interference with operators, and improve overall work efficiency.

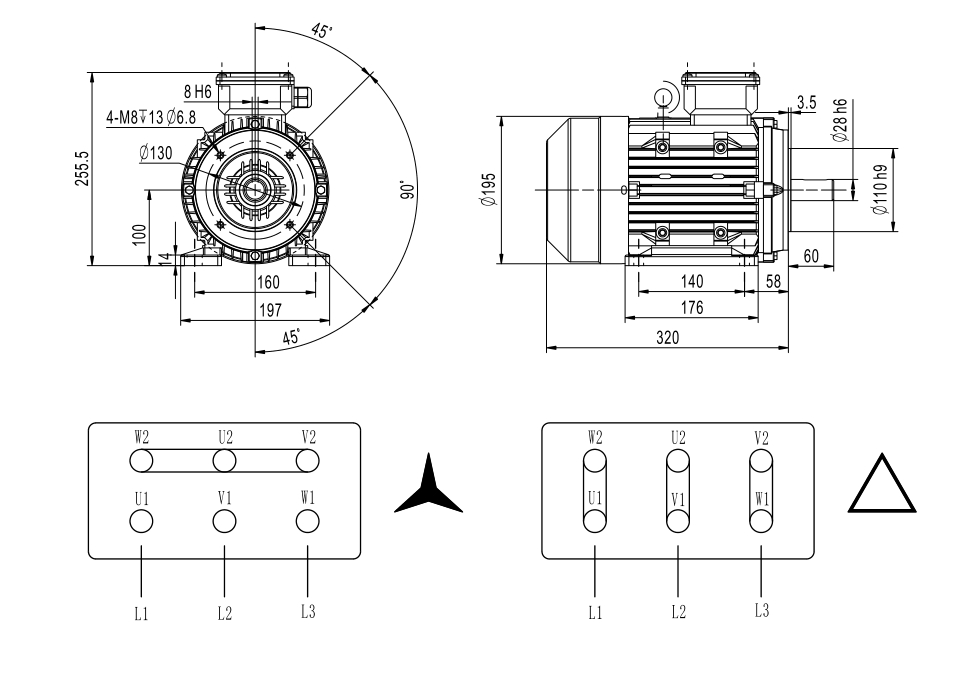

Drawing:

Data:

Model No.	Type	Output		Speed	Voltage	Frequency	Weight
		HP	KW	r/min	V	HZ	kg
3EA10430N-WSD	YE3-100L2-4	4.05	3	1430	200-230/220-380/380-440/690	50Hz/60Hz	22.2
